Automatic Power Factor Control (APFC) Panels – Benefits, Working, and its Importance

In the modern industrial world, energy efficiency is more than a buzzword—it’s a business necessity. Rising electricity tariffs, strict utility regulations, and sustainability goals are pushing industries to optimize every unit of power consumed. One of the most effective solutions for this is the Automatic Power Factor Control (APFC) Panel.

In this blog, we’ll explore:

  • What is Power Factor & Why it Matters

  • How APFC Panels Work

  • Benefits of APFC Panels in Industries

  • Role of Harmonic Filters with APFC

  • FAQs about APFC Panels

🔍 What is Power Factor?

Power Factor (PF) is a measure of how effectively electrical power is being used.

Formula:
👉 Power Factor = Real Power (kW) ÷ Apparent Power (kVA)

  • Ideal PF = 1 (Unity Power Factor) → 100% efficient usage.

  • Low PF (<0.9) → Indicates wastage of power, higher current demand, and penalties from utilities.

✅ Example:

If your plant draws 100 kVA but only uses 85 kW effectively, the PF = 0.85. This inefficiency increases electricity bills and equipment stress.

🏭 Why Power Factor Drops in Industries

Industries use equipment like:

  • Motors

  • Compressors

  • Welders

  • Induction furnaces

  • Variable Frequency Drives (VFDs)

These are inductive loads that consume reactive power (kVAR), reducing the power factor.
Utilities often impose penalties for PF < 0.9 because it strains the grid.

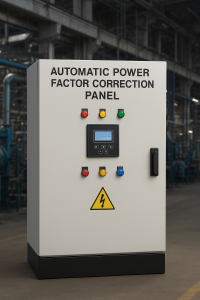

⚡ What is an APFC Panel?

An Automatic Power Factor Control (APFC) Panel is an intelligent electrical device that automatically improves power factor in real time.

🔧 Working of APFC Panels:

  1. Microprocessor-based relay continuously monitors the power factor.

  2. Capacitor banks are switched ON/OFF through contactors.

  3. The system maintains the PF close to unity (0.98–0.99).

  4. This reduces penalties, improves efficiency, and lowers demand charges.

👉 Unlike manual capacitor banks, APFC panels respond dynamically to load changes.

🎯 Benefits of APFC Panels

1. Lower Electricity Bills

  • Avoid penalties from low PF.

  • Reduce kVA demand charges.

2. Quick ROI (Return on Investment)

  • Most APFC panels pay back within 6–12 months.

3. Longer Equipment Life

  • Motors, transformers, and cables run cooler.

  • Less overheating and reduced I²R losses.

4. Automatic & Smart Operation

  • No human intervention required.

  • IoT-enabled APFCs provide remote monitoring.

5. Free Up Transformer Capacity

  • With improved PF, transformers can handle more productive load.

⚠️ APFC and Harmonics – Why Filters are Needed

Modern industries with VFD loads generate harmonics. If unchecked, harmonics can:

  • Overheat transformers and cables.

  • Damage capacitors in APFC panels.

  • Cause nuisance tripping of breakers.

  • Distort voltage waveform.

✅ Solution: Detuned / Harmonic Filters

  • Detuned reactors protect capacitors from resonance.

  • Active Harmonic Filters (AHF) dynamically cancel harmonics.

Thus, for industries with heavy VFD usage, APFC panels must be equipped with harmonic filters.

🛠️ Applications of APFC Panels

APFC panels are widely used in:

  • Textile mills 🧵

  • Foundries & steel plants 🏗️

  • Plastic moulding industries 🧴

  • IT parks & commercial complexes 🏢

  • Shopping malls 🛍️

  • Hospitals & large institutions 🏥

Basically, any plant with inductive or fluctuating loads benefits from APFC panels.

❓ Frequently Asked Questions (FAQs)

1. What is the ideal power factor to maintain?

Most utilities require PF ≥ 0.95. With APFC, you can achieve up to 0.99.

2. What is the difference between fixed capacitors and APFC panels?

Fixed capacitors give constant compensation and may cause over-correction.
APFC panels provide dynamic, automated correction based on load.

3. Do APFC panels require maintenance?

Yes. Regular capacitor health checks, contactor inspections, and relay calibration are essential.

4. Can APFC panels handle harmonics?

Only if equipped with detuned harmonic filters. Otherwise, capacitors may get damaged.

5. What is the life of an APFC panel?

With proper maintenance, APFC panels last 8–10 years or more.

✅ Conclusion

An APFC panel is not an expense—it’s an investment. By reducing electricity bills, preventing penalties, and extending equipment life, it pays back within months and delivers savings for years.

In industries with VFDs and nonlinear loads, coupling APFC with harmonic filters ensures safe, efficient, and reliable power quality.

If your facility is struggling with high bills or utility penalties, installing an Automatic Power Factor Control panel is the smartest move you can make today.
